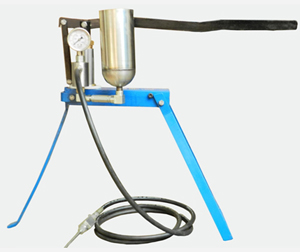

Pu &Epoxy Injection Hand Pump-100 (Model- MI-100)

P U& Epoxy Injection Hand Pump-100 (MI-100) is a piston operated pump. Piston is connected to a link which in turn is connected to a longhandle. Long handle provides an ease towards pumping. A high pressure can be generated with a minimum effort. The handle is pulled upward for suction and pressed downward for pumping which in turn reciprocates the piston to generate a high pressure on the fluid. Efficient N.R.V.s and seals are provided for proper locking of the pressure of the, which makes the pump very efficient and useful with minimum manual effort. Pu & Epoxy Injection Hand Pump-100 (MI-100) can be used even in remote areas because it does not require electrical power. The Grout fluid from outlet goes with a high injection pressure and velocity.

Item	Feature	Benefit
Pump	Output Pressure up-to 1500psi.	Suitable for PU or Epoxy injection grouting jobs.
	Output discharge up-to 0.5 liter/min	Low grouting time and labor consumption.
	Suitable material selection	Compatible with grouting job and chemicals.
	Detachable	Easy to clean and maintain.
Manual Driving handle	Long  Length and curved	Provides High torque with minimum effort.
	Low Weight	Can be carried easily.
	Manual work	Easily available.
Stand and feed Hopper	sturdy metal construction	Increases equipment life and resist from frequent breakdowns.
	Cleaning	Can be scrapped and cleaned.
	Durability	Highly durable.
	Fluid compatibility	PU, Epoxy resins, solvents.
Fluid Hoses	Compatibility with materials	No changing hoses between applications.
	Swivel connection	Easy to change hoses – saves time, Orientation at any angle.
	High Pressure capacity	Suitable for injection grouting job.
Pressure gauge	200 bar	Pressure can be regularly monitored and controlled.
Other Accessories	Suitability	Suitable with pump and grouting job.
