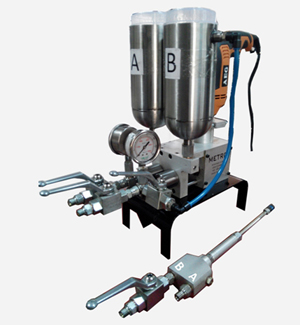

Dual line Epoxy & Pu Injection Pump (Model- MIE-300-2C)

Dual line Epoxy & Pu Injection Pump (MIE-300-2C) is suggested for injection of double component chemical with a mixing ratio of 1:1. The two components (Generally named as Type A and Type B) of the grout are mixed in a definite proportion and used to fill the void. It has a very low setting time so it requires an immediate attention while pumping. The attention required is immediate pouring of the injection chemical after mixing. Dual line Epoxy & Pu Injection Pump (MIE-300-2C) has two cylinders and pistons. The chemicals are poured and pumped separately and mixed with the help of static mixers in mixing gun so, chemical mixture ejects immediately after mixing. Dual line Epoxy & Pu Injection Pump (MIE-300-2C) has a higher output discharge up-to 2 liter per minute at a pressure up-to 5000 psi.

Item	Feature	Benefit
Pump	Output Pressure up-to 5000 psi	Suitable for injection grouting.
	Output discharge up-to 2 LPM	Suitable for fast acting chemicals and time saving.
	Two cylinders	Pumps A and B separately.
	Detachable	Easy to clean and maintain.
Drive Motor	Electronic drill machine	Provides High torque.
	Low Weight (2.7 kg approx.)	Can be carried easily.
	220 V A.C.	Easily available.
Stainless Steel feed Hoppers	1.5 liter capacity- 2 Nos.	High Volume capacity.
	Cleaning	Can be scrapped and cleaned.
	Durability	Highly durable.
	Fluid handling	Epoxies, urethanes, solvents.
Fluid Hoses	Compatibility with epoxies, urethanes, solvents, water	One hose fits all – no changing hoses between applications
	Swivel connection	Easy to change hoses – saves time, Orientation at any angle.
	High Pressure capacity.	Suitable for grouting job.
Pressure gauge	9000 psi	Pressure can be regularly monitored.
Injection Gun	Static mixer type design	Mixes fluid immediate before injection.
Other Accessories	Suitability	Suitable with pump and grouting jobs.
