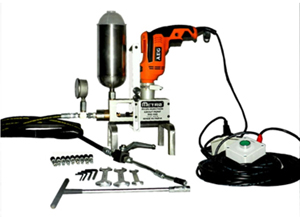

Electrical Cement grout Pump (Model- ECGP-35)
MIE-400 is acomplete set of equipment required for high pressure epoxy, PU or Resinous injection. Proper locking of the pressure of the fluid is provided with efficient N.R.V.s and seals, which makes the pump more efficient and maintenance free. Resin, Pu or any type of waterproofing chemical having a viscosity of 50 to 800 cps can be efficiently pumped with a high pressure up to 400 bars by using MIE-400.
| Item | Feature | Benefit |
| Pump | Output Pressure up-to 8000 psi | Suitable for injection grouting. |
| Output discharge up-to 1 LPM | Suitable for fast acting chemicals and time saving. | |
| Suitable Material selection | Compatible with grouts. | |
| Detachable | Easy to clean and maintain. | |
| Drive Motor | Electronic drill machine | Provides High torque. |
| Low Weight (2.7 kg approx.) | Can be carried easily. | |
| 220 V A.C /110 volt (optional) | Easily available. | |
| Stainless Steel feed Hopper | 1.5 liter capacity | High Volume capacity. |
| Cleaning | Can be scrapped and cleaned. | |
| Durability | Highly durable. | |
| Fluid handling | Epoxies, urethanes, solvents. | |
| Fluid Hoses | Compatibility with epoxies, urethanes, solvents, water | One hose fits all – no changing hoses between applications |
| Swivel connection | Easy to change hoses – saves time, Orientation at any angle. | |
| High Pressure capacity. | Suitable for grouting job. | |
| Pressure gauge | 9000 psi | Pressure can be regularly monitored. |
| Injection Gun | Ball type valve design | Avoids splattering in changeover from hole to hole. |
| Other Accessories | Suitability | Suitable with pump and grouting jobs. |
